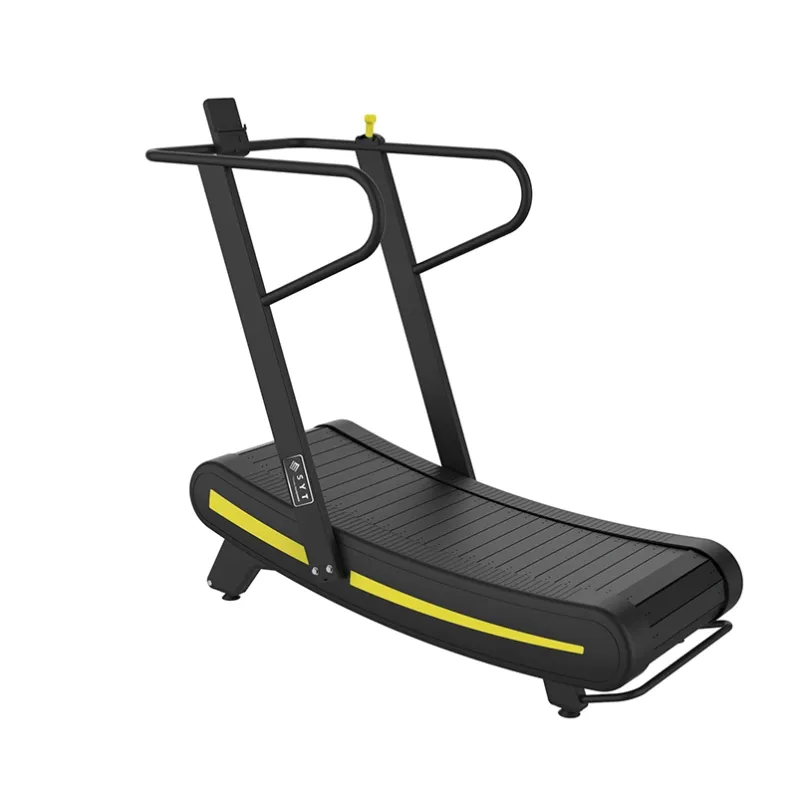

TX001 Commercial Self-Powered Curved Treadmill
The TX001 is a self-powered curved treadmill designed for walking, running, sprint training and HIIT workouts. Its durable steel structure supports users up to 180 kg and requires no motor or external power.
Quick Facts
- Product type: Commercial self-powered curved treadmill
- Drive system: Mechanical, user-powered operation
- Motor requirement: No motor or external electricity required
- Main material: Commercial steel structure
- Maximum user weight: 180 kg
- Product dimensions: 1800 × 835 × 1530 mm
- Running area length: 1300 mm
- Packaging: 1900 × 1000 × 650 mm / 190 kg gross weight
Commercial Self-Powered Curved Treadmill
The TX001 Commercial Curved Treadmill is designed for walking, running, sprint training, HIIT workouts and functional conditioning in commercial gyms, fitness studios and professional training centers.
Unlike a motorized treadmill, the TX001 is powered entirely by the user. The curved running surface moves according to the user's walking or running effort, allowing natural control of training speed without electrical speed buttons.
The user can accelerate by moving toward the front of the curved running surface and slow down by moving toward the rear. This self-controlled design is suitable for interval training, sprint workouts and performance-focused cardio exercise.
Its durable steel structure supports users weighing up to 180 kg. Optional equipment colors and customized logos are available for distributors, gym projects and private-label orders.
Key Features
Self-Powered Operation
The running belt is driven by the user's movement and does not require a treadmill motor or external power supply.
Curved Running Surface
The curved deck supports natural acceleration and deceleration according to the user's position and running effort.
Mechanical Drive System
The mechanical drive provides direct user-controlled movement for walking, jogging, running and sprint training.
180 kg User Capacity
The reinforced commercial structure supports users weighing up to 180 kg.
LED Workout Display
The integrated LED display provides visible workout and operating information during training.
OEM Customization
Custom equipment colors, logos and labels are available according to confirmed order requirements.
Training Benefits
Self-Controlled Speed
Users can change their speed naturally without waiting for an electric motor to accelerate or decelerate.
Cardiovascular Endurance
Walking, running and interval training support heart and lung endurance during regular cardio workouts.
Sprint and HIIT Training
The responsive running surface is suitable for rapid changes between high-intensity sprints and recovery periods.
Lower-Body Conditioning
Running movement engages the glutes, quadriceps, hamstrings, calves and core muscles.
Technical Specifications
| Model | TX001 |
|---|---|
| Product Name | Commercial Self-Powered Curved Treadmill |
| Product Type | Non-motorized curved treadmill / manual air runner |
| Drive Type | Mechanical, user-powered |
| Power Requirement | No external power required for belt operation |
| Main Material | Steel |
| Frame Structure | Non-folding |
| Running Surface | Curved running belt |
| Running Area Length | 1300 mm |
| Running Belt Width | Under 420 mm; final specification to be confirmed |
| Display | LED display |
| Heart-Rate Test | Not included |
| Training Functions | Walking, running, sprinting, HIIT and workout programs |
| Suitable Users | Men and women |
| Application | Commercial gyms and professional fitness facilities |
| Maximum User Weight | 180 kg |
| Product Dimensions | 1800 × 835 × 1530 mm |
| Net Weight | 150 kg |
| Gross Weight | 190 kg |
| Color Options | Available according to order requirements |
| Logo Customization | Available |
| Available Documentation | CE and ISO 9001 related documentation |
| Minimum Order Quantity | 1 unit |
| Packing Dimensions | 1900 × 1000 × 650 mm |
| Manufacturing Origin | Shandong, China |
Suitable Applications
The TX001 is suitable for self-powered running, sprint training and functional cardio exercise in professional fitness environments.
Quality and Order Verification
Frame Inspection
The steel structure, welding positions, connection points and fasteners can be checked before shipment.
Running Belt Inspection
The curved running belt, rollers and mechanical drive components can be tested for smooth movement.
Stability Inspection
The assembled treadmill can be checked for structural stability during walking, jogging and running.
Display Inspection
The LED display and available workout information can be checked before packaging.
Customization Confirmation
Equipment color, logo position and label design can be confirmed before production.
Photo and Video Support
Product photos, running demonstration videos and packing photos can be requested before shipment.
Packaging Information
Frequently Asked Questions
Does the TX001 require electricity?
No. The running belt is powered by the user's walking or running movement and does not require a treadmill motor.
How is the running speed controlled?
The user controls speed through running effort and body position. Moving toward the front increases speed, while moving toward the rear helps reduce speed.
What is the maximum user weight?
The TX001 supports a maximum user weight of 180 kg.
Is the TX001 suitable for sprint training?
Yes. Its self-powered curved running surface is suitable for sprint workouts, interval training and HIIT sessions.
Does the TX001 have a display?
Yes. The TX001 is equipped with an LED display for workout and operating information.
Is the TX001 foldable?
No. The TX001 uses a fixed, non-folding commercial structure.
What are the product dimensions?
The TX001 product dimensions are 1800 × 835 × 1530 mm.
What are the net and gross weights?
The TX001 has a listed net weight of 150 kg and gross weight of 190 kg.
Can the color and logo be customized?
Yes. Optional colors and customized logos are available according to confirmed order requirements.
What documentation is available?
CE and ISO 9001 related documentation can be confirmed according to the order and destination market requirements.
