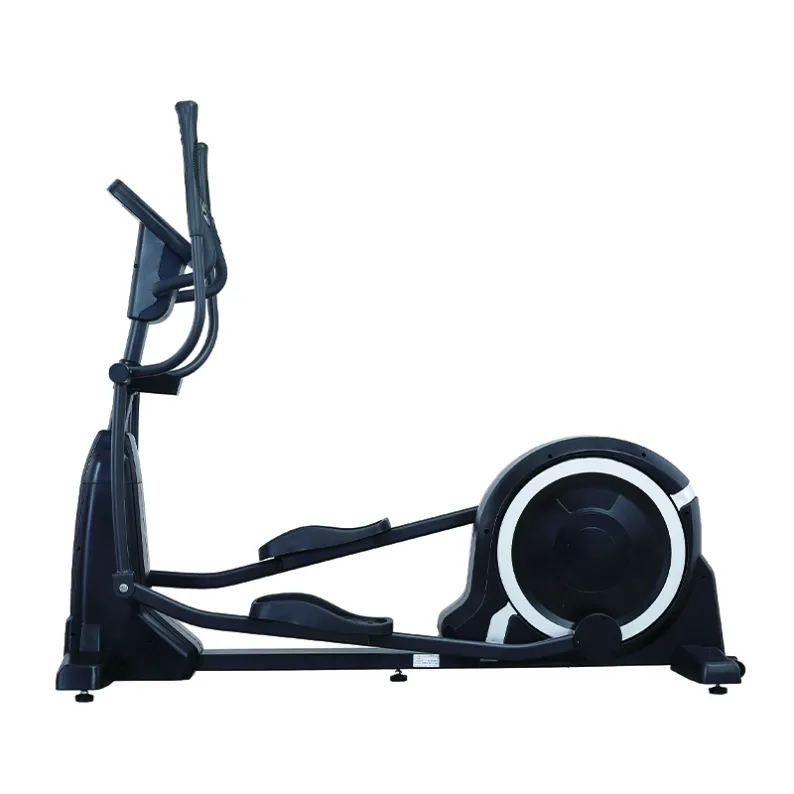

CX001 Commercial Rear-Drive Magnetic Elliptical Trainer
The CX001 Commercial Elliptical Trainer features a 500 mm stride, smooth magnetic resistance and a stable rear-drive system. It includes LCD or TFT console options, 10 preset programs, 3 user-defined programs and a 150 kg maximum user capacity, making it ideal for commercial gyms, hotels and fitness centers.
Quick Facts
- Product type: Commercial rear-drive magnetic elliptical trainer
- Key specifications: 500 mm stride / 150 kg maximum user weight / 100 kg net weight
- Console: LCD or TFT display options
- Training programs: 10 preset programs / 3 user-defined programs
- Resistance: Program-controlled magnetic resistance
- Packing: 2130 × 725 × 890 mm / 145 kg gross weight
Commercial Rear-Drive Elliptical Trainer
The CX001 Commercial Elliptical Trainer is designed for low-impact cardiovascular training in commercial gyms, hotel fitness rooms, apartment gyms and professional training facilities.
Its rear-drive structure and 500 mm stride length provide a natural elliptical movement path. The magnetic resistance system delivers smooth resistance changes and low-noise operation, helping users complete comfortable forward and reverse cardio workouts.
Precision all-steel bearings are installed at the main movement joints to reduce friction and improve operating stability. PU foam handles and wide ABS pedals provide comfortable contact and stable foot support during full-body exercise.
Key Features
500 mm Stride Length
The extended stride supports comfortable leg movement and provides a more natural elliptical training path.
Rear-Drive Structure
The rear-drive system helps maintain balanced momentum and smooth movement during forward and reverse training.
Magnetic Resistance
Program-controlled magnetic resistance provides smooth adjustment with low operating noise.
Precision Steel Bearings
Bearings at the main movement joints reduce friction and support stable operation under repeated use.
LCD or TFT Console
Different console options are available to meet the requirements of commercial fitness projects.
Easy Transportation
Rear transport rollers allow gym staff to move and reposition the machine more conveniently.
Console and Training Programs
The CX001 can be configured with an LCD or TFT console. The display provides essential training information, including time, distance, speed, calories and heart rate.
Ten preset programs and three user-defined programs provide different training options for cardiovascular endurance, calorie burning and general fitness exercise.
Technical Specifications
| Model | CX001 |
|---|---|
| Product Name | Commercial Rear-Drive Magnetic Elliptical Trainer |
| Movement Type | Elliptical motion |
| Drive Type | Rear drive |
| Resistance System | Magnetic resistance |
| Resistance Control | Program controlled |
| Stride Length | 500 mm |
| Console | LCD / TFT options |
| Display Functions | Time, distance, speed, calories and heart rate |
| Preset Programs | 10 |
| User-Defined Programs | 3 |
| Handle Material | PU foam |
| Pedal Material | ABS |
| Product Dimensions | 2050 × 740 × 1710 mm |
| Net Weight | 100 kg |
| Maximum User Weight | 150 kg |
| Packing Dimensions | 2130 × 725 × 890 mm |
| Gross Weight | 145 kg |
| Transport System | Rear transport rollers |
Commercial Applications
The CX001 is suitable for professional and light-commercial cardio training environments.
Quality Control & Verification
- Frame Inspection Frame alignment, connection points, fasteners and exterior parts are checked before shipment.
- Movement Inspection Pedals, connecting rods and bearing positions are tested for smooth forward and reverse movement.
- Resistance Inspection Magnetic resistance changes and program-controlled adjustment are tested during assembly.
- Console Inspection Display data, control buttons, training programs and heart-rate feedback are checked.
- Stability Inspection The assembled machine is checked for stability, abnormal movement and operating noise.
- Packing Verification Product configuration, accessories, protective materials and packing dimensions are verified before shipment.
Request a Quote for CX001
To receive an accurate quotation, please provide:
- Quantity: Required number of machines
- Destination: Country and destination port
- Console: LCD or TFT requirement
- Customization: Frame color and custom logo requirements
- Application: Commercial gym, hotel, apartment, office or home gym
- Additional requirements: Packaging, inspection or project requirements
Model: CX001 | Quantity: ___ | Destination country: ___ | Destination port: ___ | Console: LCD / TFT | Frame color: ___ | Custom logo: Yes / No | Additional requirements: ___
